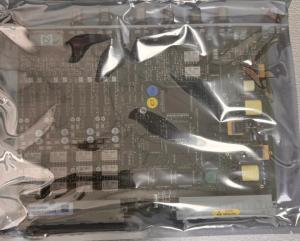

MPC4 200-510-071-113 Machinery Protection Card Up to Two Speed Inputs Simultaneously
Product Details:
| Brand Name | Others |
| Model | MPC4 |
| Ordering information | 200-510-071-113 |
| Condition | New |
| Gross Weight/Shipping Weight | 2.2 lbs / 35.2 oz / 1kg |
| Packing Size | 6.4" x 6.4" x 4.8" (16cm x 16 cm x 12 cm) |
| Country of Origin/Original Country | China |
| Lead Time | In Stock |
| Shipping Port | Xiamen |
| Payment | T/T |
| Sales Price | Inquiry |
| Color | Depends on material |
| Warranty | 12 months |
| Lead time | 5-8 work days |
| Courier partners | DHL, UPS, TNT, FedEx and EMS |
Additional Information:
| Temperature Operating | −25 to 65°C (−13 to 149°F) |
| Temperature Storage | −40 to 85°C (−40 to 185°F) |
| Humidity Operating | 0 to 90% non-condensing |
| Humidity Storage | 0 to 95% non-condensing |
Description:
Digital processing includes digital filtering, integration or differentiation (ifrequired),rectification (RMS, mean value, true peak or true peak-to-peak), order tracking (amplitude and phase) and measurement of the sensor-target gap.
For further information on the use of MPC4/IOC4T card pairs in general, refer to the machinery protection system hardware manual and the MPSx software manuals. For information on the use of MPC4/ IOC4T card pairs in functional safety contexts, refer to the refer to the functional safety manual.
A digital output is available internally (on the corresponding IOC4T input/output card) for each alarm level. These alarm signals can drive four local relays on the IOC4T card and/or can be routed using the rack’s Raw bus or Open Collector (OC) bus to drive relays on optional relay cards such as the RLC16 or IRC4.
An LED indicator on the MPC4 front panel indicates whether a processing or hardware error has occurred. Six additional LEDs (one per input channel) indicate whether the OK System has detected a fault and whether an alarm has occurred on the channel.
The MPC4 card is available in three versions: a “standard” version, a “separate circuits” version and a “safety” (SIL) version, all of which function as a card pair usingacorresponding IOC4T input/ output card.
