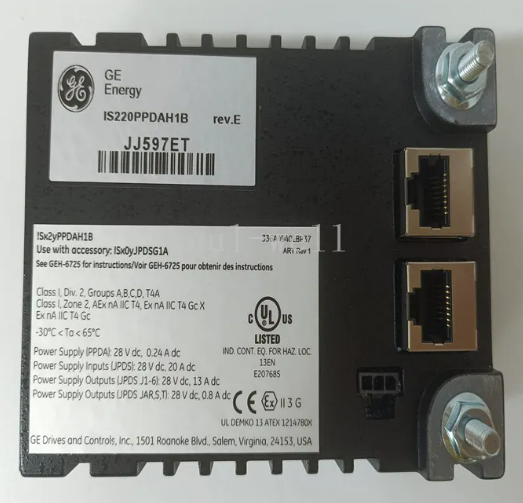

GE IS220PPDAH1B Power Distribution System Feedback model produced by General Electric for the Mark VIe System
Product Details:
| Brand Name | GE |
| Model | IS220PPDAH1B |
| Condition | New |
| Gross Weight/Shipping Weight | 2.2 lbs / 35.2 oz / 1kg |
| Packing Size | 6.4" x 6.4" x 4.8" (16cm x 16 cm x 12 cm) |
| Country of Origin/Original Country | United States (USA) |
| Lead Time | In Stock |
| Shipping Port | Xiamen |
| Payment | T/T |
| Sales Price | Inquiry |
| Color | Depend on product |
| Warranty | 12 months |
| Lead time | 5-8 work days |
| Courier partners | DHL, UPS, TNT, FedEx and EMS |
Additional Information:
Description:
The module operates at high speeds, enabling fast and responsive digital input monitoring. It can rapidly detect changes in the state of digital inputs, facilitating real-time data acquisition and analysis in dynamic industrial processes.
The module is compatible with a wide range of digital input signals, accommodating diverse industrial applications. It can monitor various digital signal types, such as discrete on/off signals or pulse signals, ensuring versatility and compatibility in different monitoring scenarios.
Built to withstand demanding industrial environments, the module features a robust construction. It is designed to handle electrical noise, temperature variations, vibrations, and other adverse conditions, ensuring reliable operation and long-term performance.
The module is configurable and programmable, allowing for customization and adaptation to specific application requirements. It can be configured with specific input parameters, filtering options, or other settings, providing flexibility and versatility in digital input monitoring setups.
Data from the VCMI boards in each of the three control modules is then exchanged and voted prior to transmitting the data to the main processor boards for execution of the application software. Output voting is extended to the turbine with three coil servos for control valves and 2 out of 3 relays for critical outputs such as hydraulic trip solenoids. Other forms of output voting are available including a median select of 4-20 mA outputs for process control and 0-200 mA outputs for positioners.
Sensor interface for TMR controls can be either single, dual, triple redundant, or combinations of redundancy levels. The TMR architecture supports riding through a single point failure in the electronics and repair of the defective board or module while the process is running. Adding sensor redundancy increases the fault tolerance of the overall system. Another TMR feature is the ability to distinguish between field sensor faults and internal electronics faults. Diagnostics continuously monitor the three sets of input electronics and alarm any discrepancies between them as an internal fault versus a sensor fault. In addition, all three main processors continue to execute the correct voted input data.
There are two types of terminal boards. One type has two 24 point, barrier type terminal blocks that can be unplugged for field maintenance These are available for Simplex and TMR controls. They can accept two 3.0 mm2 (#12 AWG) wires with 300 V insulation. Another type of board used on Simplex controls is mounted on a DIN rail and has one, fixed, box type terminal block. It can accept one 3.0 mm2 (#12AWG) wire or two 2.0 mm2 (#14 AWG) wires with 300 V insulation.
