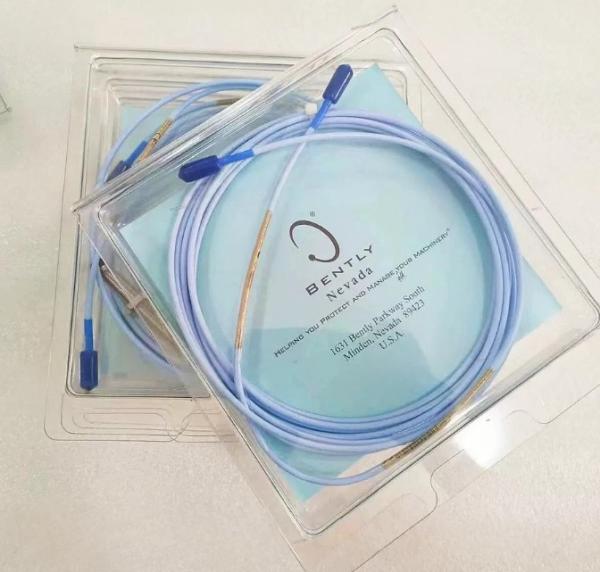

330171-00-40-10-02-00 Bently Nevada 3300 XL 5MM Proximity Probes
Product Details:
| Brand Name | Bently Nevada |
| Model | 330171-00-40-10-02-00 |
| Catalog | 3300 XL |
| Origin | United States (USA) |
| Dimension | 16*16*12cm |
| Weight | 1kg |
| HS Code | 8537101190 |
| Payment | T/T |
| Sales Price | $400 |
| Warranty | 12 months |
| Lead time | 3-5 work days |
Additional Information:
| Weight |
| Total System | 0.71 kg (1.6 lb), typical |
| 3300 5mm Probe | 323 g (11.39 oz). |
| XL Extension Cable | 34 g/m (0.4 oz/ft) 103 g/m (1.5 oz/ft) (armored) |
| XL Proximitor Sensor | 246 g (8.7 oz) |
Description:
When combined with a 3300 XL Proximitor Sensor and XL extension cable, the system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface. The system can measure both static (position) and dynamic (vibration) data. Its primary use is in vibration and position measurement applications on fluid-film bearing machines, as well as Keyphasor measurement and speed measurement applications.
The system provides an accurate, stable signal output over a wide temperature range. All 3300 XL Proximity Transducer Systems achieve this level of performance with complete interchangeability of probe, extension cable, and Proximitor sensor, eliminating the need for individual component matching or bench calibration.
The 3300 XL NSv Transducer System has an Average Scale Factor of 7.87 V/mm (200 mV/mil), which is the most common output for eddy current transducers. Its enhanced sideview and small target characteristics give it a shorter linear range than the Bently Nevada 3300 XL-series 5 and 8 mm Transducer System. The 1.5 mm (60 mils) of linear range exceeds the linear range of the 3000-series 190 Transducer System.
The 3300 5 mm probe and 3300 XL extension cable have corrosion-resistant, gold-plated brass ClickLoc connectors. These connectors require only finger-tight torque (connectors will "click"), and the specially engineered locking mechanism prevents the connectors from loosening. The connectors require no special tools for installation or removal.
Datasheet Link:
Bently Nevada 330171-00-40-10-02-00.pdf
